Thông tin chi tiết sản phẩm
| Làm nổi bật | dry powder fire extinguishing agent,fire extinguishing agent penetration 600 cone degree,petroleum testing fire extinguishing agent |
||
|---|---|---|---|
Mô tả sản phẩm

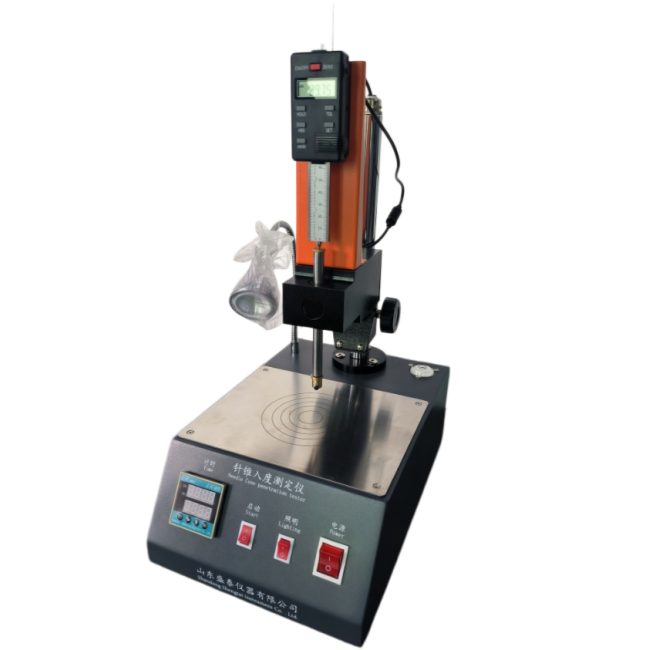

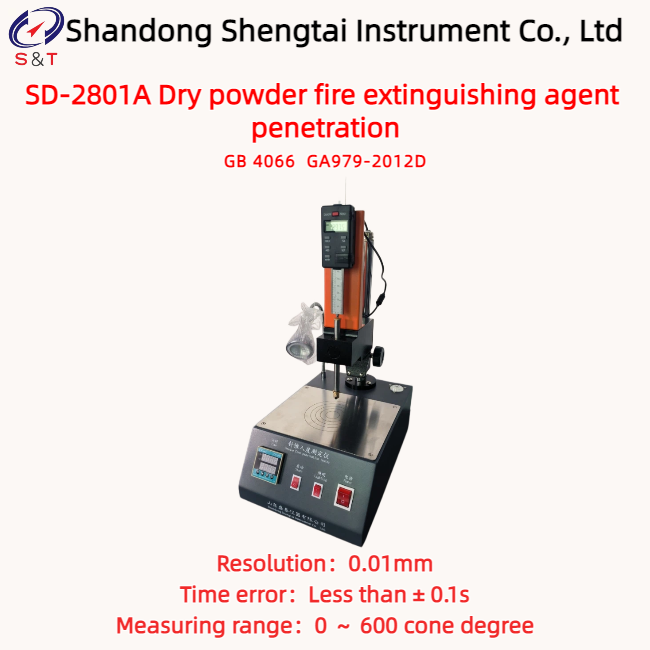

SD-2801A Dry powder fire extinguishing agent penetration
Standard: GB 4066 GA979-2012D
SD-2801A dry powder fire extinguishing agent penetration tester is designed and manufactured according to the requirements of "dry powder fire extinguishing agent" GB 4066-2017 and GA979-2012D dry powder fire extinguishing agent, but also suitable for road oil asphalt, modified asphalt and liquid oil asphalt or emulsified asphalt residual injection degree test.
Main technical features
● Use a digital display to show the cone penetration value, which is intuitive and eye-catching.
● Digital display of cone entry timing control device.
● It has the functions of coarse and fine adjustment of the lifting frame, easy adjustment, and accurate needle alignment.
● Experiment time can be set arbitrarily
● The needle bar assembly can be adjusted up and down within 0-70mm by adjusting the knob.
● Lifting bracket: a dual lifting and adjusting mechanism for coarse and fine adjustment, making it easy for the needle tip to align with the sample plane.
Main technical parameters and indicators
| Measuring range | 0 ～ 600 cone degree |
| Time error | Less than ± 0.1s |
| Resolution | 0.01mm |
| Cone penetration accuracy | ± 1 cone penetration degree |
| Standard needle body | 2.5 ± 0.05g (including 50g ± 0.05g of standard rod) |
| Other | Equipped with a cold light source for easy use and operation |
| Instrument size | 325 * 220 * 510mm |
| Instrument weight | 7.4kg |
| Packaging size | 460 * 350 * 550mm |
| Packaging weight | 12.3kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Set | 1 | |
| 2 | Standard needle | Piece | 1 | |
| 3 | Connecting rod | Piece | 1 | |
| 4 | Sample container | Piece | 1 | |
| 5 | Fuse tube 5A (∮5×20) | Piece | 1 | |
| 6 | power cord (250V 6A) | Piece | 1 | |
| 7 | Instruction manual | Copy | 1 | |
| 8 | Certificate warranty card | Copy | 1 |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
