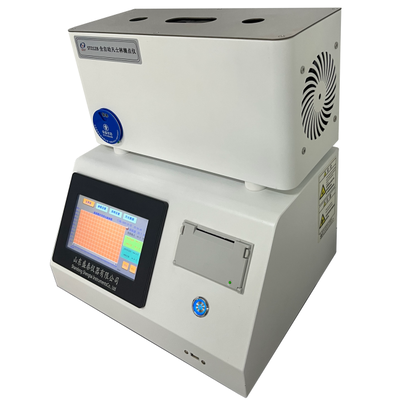

2 Holes Automatic Vaseline Ointment Drop Point Tester RT ～ 400 ℃ Medical Vaseline ASTM D127

ST212B Automatic Vaseline ointment drop point tester 2-hole

The ST212B fully automatic Vaseline dropper complies with the 2025 Chinese Pharmacopoeia and SH/T0678 "Vaseline Drip Point Determination Method" GB1790-2012 "Medical Vaseline" standard. It is based on a microprocessor and integrates mechanical, optoelectronic, and micro detection technologies. It has functions such as automatic temperature control, automatic adjustment of temperature rise rate, automatic detection and recording of drip point data, and automatic printing and output to complete the measurement of drip points.

White Vaseline Drip Point Instrument, Yellow Vaseline Drip Point Instrument

Main features:

● Adopting a 7-inch touch screen display;

● Imported temperature sensors ensure accurate and stable temperature measurement and control;

● Metal bath heating, the heating rate can be adjusted to 1 ℃/min according to the standard

● Drop point detection adopts high-temperature resistant specialized photoelectric detection;

● Equipped with an internal clock, no need to input the experiment date.

Applicable standards:

2025 Chinese Pharmacopoeia, SH/T0678 "Determination of Vaseline Drop Point" and GB1790-2012 "Medical Vaseline" ASTM D127

Technical indicators:

● Curve display: Display temperature time curve trend chart

● Storage method: The experimental results can store 1999 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the computer for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Standard Printing: Equipped with a micro printer for automatic measurement and needle printing

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to LIMS system (optional)

★ Account management: Set up hierarchical account management based on password, with the ability to set up a total account and sub accounts, and have role assignment function (optional).

★ Audit Tracking: The audit tracking function based on account hierarchy allows for role allocation, including administrators, engineers, operators, and other roles, which can be fixed or optional.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
