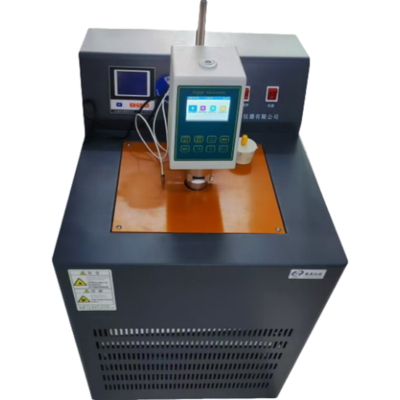

Brinell Rotational Viscometer Ordinary Temp ～ -70℃ Rotation Speed 0.1-200 R/Min ASTM D2983

  • Brinell Rotational Viscometer Ordinary Temp ～ -70℃ Rotation Speed 0.1-200 R/Min ASTM D2983
  • Brinell Rotational Viscometer Ordinary Temp ～ -70℃ Rotation Speed 0.1-200 R/Min ASTM D2983
Nguồn gốc Trung Quốc
Hàng hiệu Shandong Shengtai Instrument Co.,Ltd
Chứng nhận ASTM D2983 GB/T11145
Số mô hình SH11145B
Số lượng đặt hàng tối thiểu 1
chi tiết đóng gói thùng gỗ
Thời gian giao hàng 7 - 15 ngày làm việc
Điều khoản thanh toán T/T
Khả năng cung cấp 10000 bộ / năm

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Phạm vi nhiệt độ Nhiệt độ thông thường -70 ℃ Phương pháp kiểm soát nhiệt độ Điều khiển nhiệt độ PID kỹ thuật số
Cấu hình cánh quạt 1-4 rôto (tiêu chuẩn) 0 rôto (tùy chọn) Phạm vi độ nhớt 1-6 triệu Mpa. s (cp) 15mpa. s bên dưới, nên sử dụng rôto 0 #
Đường cong nhiệt độ độ nhớt Màn hình cảm ứng Lỗi đo lường ± 1% (FS) Chất lỏng Newton
phương pháp làm mát Làm mát máy nén Chức năng thời gian Màn hình cảm ứng hiển thị chức năng hẹn giờ
Làm nổi bật

Brinell rotational viscometer for lube oil

,

Rotational viscometer with -70℃ range

,

ASTM D2983 compliant viscometer
Để lại lời nhắn
Mô tả sản phẩm

SH11145B Brinell rotational viscometer domestic

The SH11145B Low Temperature Brinell Viscometer for Lubricating Oil is designed and manufactured strictly in accordance with GB/T11145-2014 Determination of Low Temperature Viscosity of Lubricants using the Brockfeldt Viscometer Method. It is suitable for detecting automotive fluid lubricants with a viscosity range of 1 to 6000000mPa. s, such as gear oil, hydraulic transmission oil, industrial and automotive hydraulic oil. The method for determining the shear rate viscosity of automotive fluid lubricants involves placing the sample in a cold bath at the test temperature, connecting a Burgundy viscometer and a spindle, selecting the appropriate rotational speed, and maintaining a constant temperature for 2 to 16 hours before measuring the low-temperature Burgundy viscosity of the sample.

Main technical specifications, parameters, and performance characteristics:

Standard ASTM D2983 GB/T11145
Range of temperature Ordinary temp ～ -70℃
Temp control method Digital PID temp controlle
Rotation speed 0.1-200 r/min
Rotor configuration 1-4 rotors (standard) 0 rotors (optional)
Viscosity range 1-6 million Mpa. s (cp) 15mpa. s below, it is recommended to use rotor 0 #
Viscosity temp curve Touch screen display
Measurement error ± 1% (FS) Newtonian fluid
Repeatability ± 0.2% (FS) Newtonian fluid
Screen display Viscosity, shear rate, shear stress, rotational speed, temperature, percentage torque, rotor number, and the maximum measurable viscosity value of the selected rotor at the current rotational speed, etc
Timing function Touch screen displays timing function
Data interface equipped with RS232 printing interface, can directly connect to computer printing interface
Printing function Connect to a micro printer to print experimental data
Cooling method Compressor cooling

Brinell Rotational Viscometer Ordinary Temp ～ -70℃ Rotation Speed 0.1-200 R/Min ASTM D2983 0

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packing list

Number Name Quantity Unit Note
1 Host 1 Unit
2 Rotors 1-4 1 Set
3 Rotor No.0 1 Set
4 Power adapter 1 Set
5 Protective frame 1 Piece
6 Base 1 Piece
7 Lifting column 1 Set
8 Temperature sensor 1 Piece
9 Crossbar 1 Root
10 Hex key 1 Piece
11 Wrench 1 Piece
12 User manual, certificate of conformity, warranty card 1 Set
