2 Holes Fully Automatic Wide Temp Drop Point Instrument RT ～ 400℃ LCD ASTM D2265

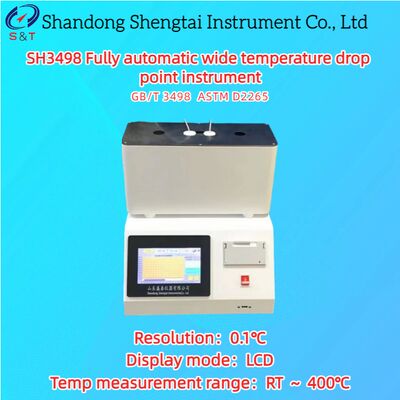

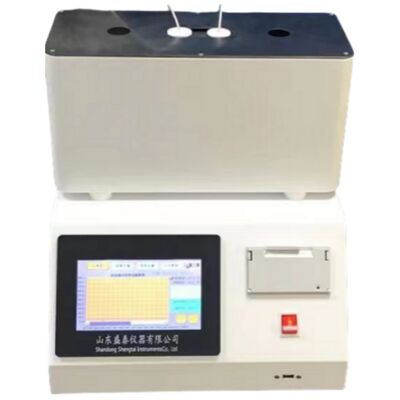

SH3498 Fully automatic wide temperature drop point instrument

SH3498 fully automatic wide temperature drop point meter conforms to ASTM D2265 standard, with a microprocessor as the core, and integrates mechanical, optoelectronic, and micro detection technologies. It has functions such as automatic temperature control, automatic adjustment of temperature rise rate, automatic detection and recording of drop point data, and automatic printing and output to complete wide temperature drop point measurement.

The drop point refers to the minimum temperature at which it reaches a certain fluidity under specified conditions, expressed in ℃(Celsius). The drop point is the temperature at which the grease changes from a semi solid to a liquid state under standard conditions. "For lubricating grease, when heated under specified conditions, the grease softens as the temperature increases. The temperature at which the first drop is dropped from the grease cup of the instrument or when it touches the bottom of the test tube in a column (the temperature point at which it changes from a solid to a liquid) is called the drop point of the grease.". The dropping point of lubricating grease is to investigate the grease forming ability of lubricating grease at high temperature

Main features

● Program startup, easy to operate;

● German company's original temperature sensor ensures accurate and stable temperature measurement and control;

● Metal bath heating, no noise, no pollution, fast heating speed;

● Dropping point detection adopts photoelectric detection;

● Equipped with an internal clock, there is no need to enter the experiment date.

● Result output: At the same time, it can be equipped with a U-disk output function, which can be output to the computer for long-term storage

● Output Format: The output format of the result USB flash disk is CSV or Excel.

● Standard printing: Standard micro printer Automatic measurement Automatic thermal printing

Technical indicators:

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
