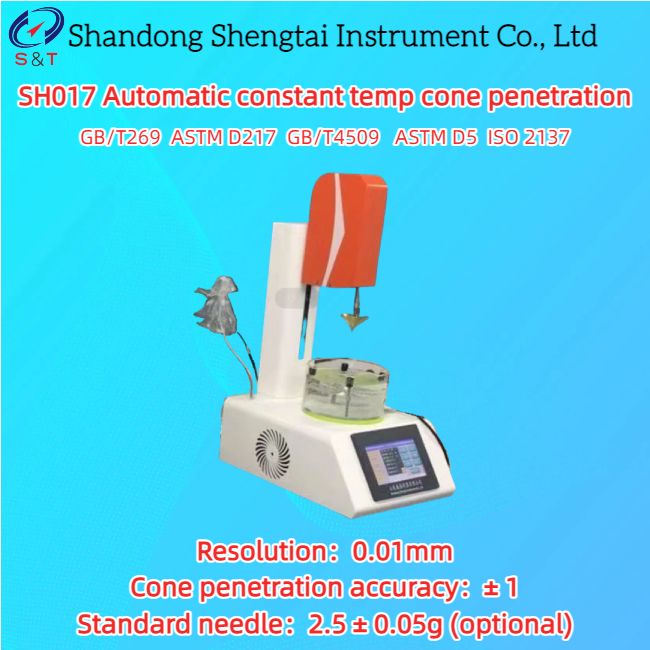

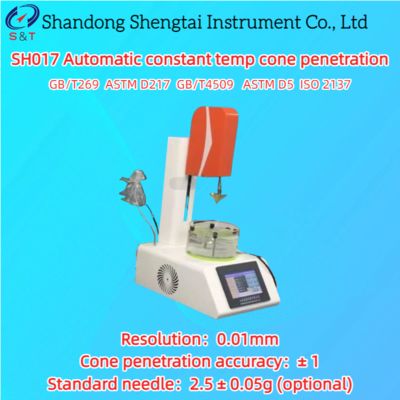

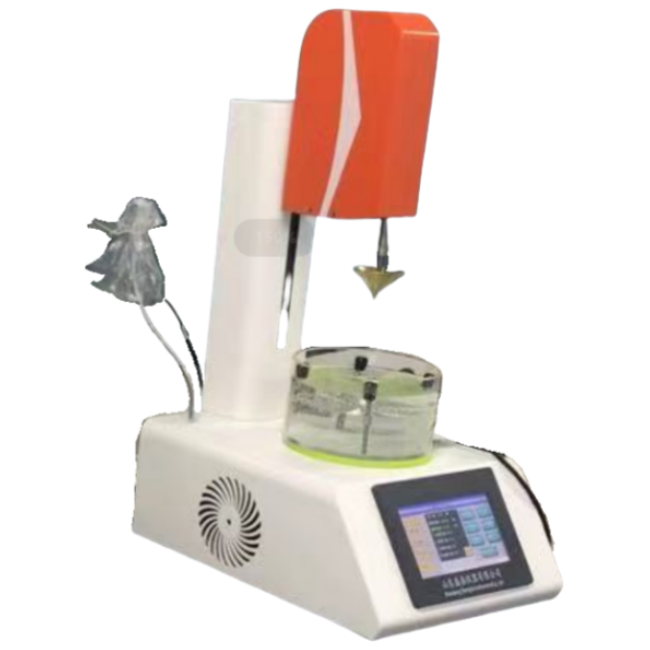

SH017 Automatic constant temperature cone penetration

The SH017 fully automatic constant temperature cone penetration tester is designed and manufactured in accordance with the technical requirements and relevant regulations of the Chinese standards GB/T269 and GB/T4509. It is mainly suitable for testing the cone penetration of lubricating grease. Transportation, highway engineering, and other industrial sectors can be widely applied. ISO 2137-2007 Petroleum Products and Lubricants GB/T22459.1 Refractory Slurry

Standards: GB/T269 ASTM D217 GB/T4509 ASTM D5 ISO 2137

Main technical features

● Upgraded to 7-inch TFT color LCD display;

● At the same time can be equipped with U disk output function

● The experimental time can be set arbitrarily

● The needle rod assembly can be adjusted up and down within 0-70mm by adjusting the knob

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Cone selection

All lubricating greases, regular cone penetration, full size cone

Required for strict standard testing

7407 gear lubricating grease

● 1/4 working cone penetration value: 1/4 working tool and 1/4 cone need to be equipped

SH/T0535 extreme pressure composite lithium based grease

● Working cone penetration value: Lubricating grease actuator and full-size cone need to be equipped

● Extended working cone penetration value: 100000 times of shearing machine and full-size cone need to be equipped

GB 7324 General lithium based lubricating grease

● Working cone penetration value: Lubricating grease actuator and full-size cone need to be equipped

● Extended working cone penetration value: 100000 times of shearing machine and full-size cone need to be equipped

GB/T 7323 Extreme Pressure Lithium based Lubricating Greases

● Working cone penetration value: Lubricating grease actuator and full-size cone need to be equipped

● Extended working cone penetration value: 100000 times of shearing machine and full-size cone need to be equipped

SH/T 0371 Aluminum based grease

● Working cone penetration value: Lubricating grease actuator and full-size cone need to be equipped

SH/T0378 composite aluminum based grease

● Working cone penetration value: Lubricating grease actuator and full-size cone need to be equipped

● Extended working cone penetration value: 100000 times of shearing machine and full-size cone need to be equipped

GB 491 Calcium based Lubricating Greases

● Working cone penetration value: Lubricating grease actuator and full-size cone need to be equipped

● Extended working cone penetration value: 100000 times of shearing machine and full-size cone need to be equipped

GB 492 Sodium based Lubricating Greases

● Working cone penetration value: Lubricating grease actuator and full-size cone need to be equipped

● Extended working cone penetration value: 100000 times of shearing machine and full-size cone need to be equipped

Roller Stability Performance: Roller Stability Tester+Cone Penetration Use

Needle selection

Asphalt penetration value GB/T4509 requires standard needles for asphalt penetration

Paraffin Needle Penetration GB/T 4985 Paraffin Needle Penetration Requires Paraffin Needle Installation

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
