0.5 level Gel Strength Meter Velocity Measurement 0.5-500mm/Min GB/T 36187

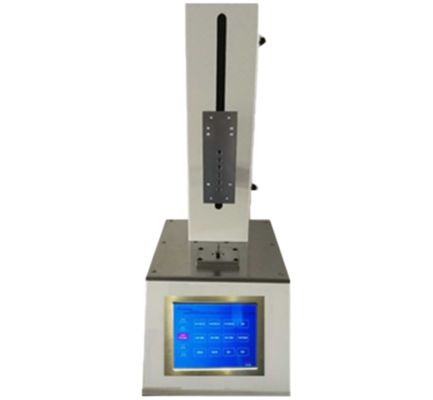

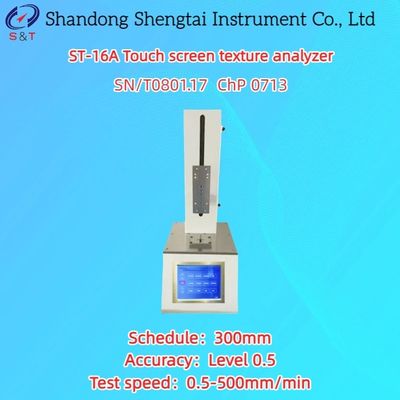

ST-16A Touch screen texture analyzer

(Detailed explanation of gel strength)

The ST-16A touch screen texture analyzer can be used to test the strength values of gel such as meat paste, jelly, protein, gelatin, carrageenan, agar, agar, superabsorbent resin, high molecular hydrogel, butter, cream, fish balls, dairy products, oil field polymers, or force values under preset conditions.

This instrument is easy to operate, does not require complex training, has one click operation, and real-time automatic display of graphs and results.

Technical feature:

● Microcomputer control, menu style interface, PVC operation panel, and large LCD display.

● Multiple functional operations such as parameter setting, viewing, clearing, and calibration can be performed

● Perform statistical analysis and calculation on grouped samples, and provide the maximum and minimum values

● The system supports both tensile and compressive testing modes, and the speed can be freely set

Applicable standards:

QB/1996 QB1997 GB28304 QB2354 QB/T1995 GB/T36187 GB6783 GB13731

● QB/1996 "Bone Glue"

● QB1997 "Photographic Gelatin"

● GB28304 "Ke De Ran Jiao"

● QB2354 "Medicinal Gelatin"

● QB/T1995 "Industrial Gelatin"

● GB/T36187 "Frozen Fish mince"

● GB6783 "Food Additive Gelatin"

● GB13731 "Medicinal Gelatin Hard Capsules"

Technical Parameter:

● Measurement unit: N,kg,Bloomg,g/cm3

● Test speed: 0.5-500mm/min (0.008mm/s-8.33mm/s) can be set arbitrarily

● Length unit: mm

● Accuracy: Grade 0.5

● Range: 200N(40KG)

● Function: gel strength value or maximum value

● Stork: 300mm

● Fixture configuration:

Cylindrical probe diameter 12.700 ± 0.010mm (for pharmaceutical use)

Cylindrical probe straight 0.5cm GB28304

Spherical probe 5mm GB/T36187

● Standard test bottle capacity: 150ml
● Inner diameter of standard test bottle: 59mm
● Height: 85mm
● Test bottle meets the standard: GB6783

● Pharmaceutical gel strength with low-temperature thermostatic device (optional)

● Power supply: 220V  50Hz (or 110V, 60Hz)

● Packaging size: 590*460*820mm

● Packaging weight: 32.3kg cardboard box

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The instruments and materials provided are brand-new goods that meet the national quality standards and have the manufacturer's certificate;
----The materials and main components provided meet the technical requirements specified in the technical data;
----The warranty period of the complete equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of the instrument quality problems during the warranty period. Due to the equipment failure caused by the user, we are responsible for the maintenance and reasonable charge.
----The equipment is provided with spare parts at a lifetime discount, and the whole machine is maintained and repaired for life.
----After the expiration of the warranty period, when the user needs maintenance and technical services, we only charge the cost.
