Dual Pore Engler Viscometer for Petroleum Products K20=(51±1)s

  • Dual Pore Engler Viscometer for Petroleum Products K20=(51±1)s
  • Dual Pore Engler Viscometer for Petroleum Products K20=(51±1)s
Place of Origin CHINA
Hàng hiệu Shandong Shengtai Instrument Co., Ltd.
Chứng nhận YB/T5030-1993 GB/T266 GB/T24209-2009 ASTM D1665 IP212
Model Number SD266E
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Display mode blue-screen LCD display Standard water value K20=(51±1)s
Measuring temp 20～100℃ Temp control precision ±0.1℃
Time counting max 999.9s Refrigeration mode Semiconductor refrigeration
Làm nổi bật

Dual Pore Engler viscometer for petroleum

,

Engler viscometer K20=51±1s

,

petroleum viscosity testing instrument
Để lại lời nhắn
Mô tả sản phẩm
Dual Pore Ethylene Tar Engler Viscometer K20=(51±1)S Measuring 20～100℃ ASTM D1665
Product Specifications
Attribute Value
Display mode blue-screen LCD display
Standard water value K20=(51±1)s
Measuring temp 20～100℃
Temp control precision ±0.1℃
Time counting max 999.9s
Refrigeration mode Semiconductor refrigeration
Product Description

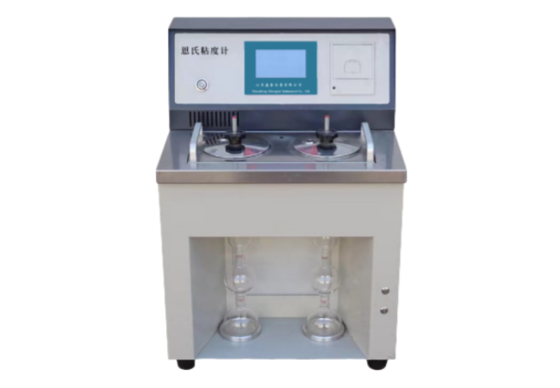

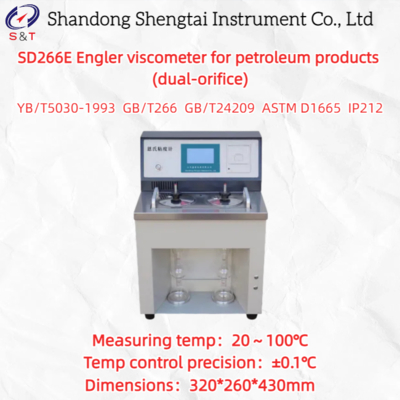

SD266E Engler viscometer for petroleum products dual-orifice

SD266E dual-orifice Engler viscometer for petroleum products is designed and manufactured in accordance with the requirements of the GB/T 266 standard Test Method for Engler Viscosity Petroleum Products and GB/T24209 of the People's Republic of China.

Applicable Standards
  • YB/T5030-1993
  • GB/T266
  • GB/T24209-2009 Method for Determining the Viscosity of Washing Oil
Scope of Application

Suitable for determining the Engler viscosity E" (conditional degree) of carbon black feedstock oil (ethylene tar), and for determining the Engler viscosity of washing oil obtained from the fractional distillation of high-temperature coal tar.

Technical Parameters
  • Power supply: AC220V±10% 50Hz
  • Display mode: blue-screen LCD display
  • Standard water value: K20=(51±1)s
  • Measuring temp: 20～100℃
  • Temp control precision: ±0.1℃
  • Refrigeration mode: Semiconductor refrigeration
  • Thermometer: Complies with standard GB514 and GB/T 24209-2009 method for wash oil viscosity
  • Material: benchtop integrated type, double inner pot structure, both inner and outer pots are made of stainless materials
  • Volumetric flask specification: 200 ± 0.2ml
  • Time counting: max 999.9s
  • Dimensions: 320*260*430mm
  • Weight: 12kg
Dual Pore Engler Viscometer for Petroleum Products K20=(51±1)s 0
Key Features
  • Benchtop type with surface finish meeting test requirements
  • Digital temperature controller with P, I, D position adjustment functions for high temperature control accuracy
Quality Assurance
The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity
The materials and main components provided meet the technical requirements specified in the technical documentation
The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
