12 Hole Brake Fluid Low Temp Flow Tester Metal Bath GB/T12981

Nguồn gốc Trung Quốc
Hàng hiệu Shandong Shengtai Instrument Co., Ltd.
Chứng nhận SH12981B
Số mô hình SH12981B
Số lượng đặt hàng tối thiểu 1
chi tiết đóng gói Vỏ gỗ
Thời gian giao hàng 7-15 ngày làm việc
Điều khoản thanh toán T/t
Khả năng cung cấp 10000 bộ/năm

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Kiểm soát nhiệt độ tắm lạnh phòng nhiệt độ ~ -60 ℃ môi trường lạnh bồn tắm kim loại
Hiển thị độ chính xác ± 1 ℃ kích thước dụng cụ 670 * 515 * 520 mm
Hệ thống điện lạnh Máy nén Cascade Cung cấp năng lượng làm việc AC220V ± 10% 50Hz
Làm nổi bật

12 hole brake fluid tester

,

low temp flow tester metal bath

,

GB/T12981 brake fluid equipment

Để lại lời nhắn
Mô tả sản phẩm
12 Holes Brake Fluid Low Temperature Flow Tester Metal Bath 125ml Test Tube GB/T12981
Product Attributes
Attribute Value
Cold bath temp control room temp ~ -60 ℃
Refrigeration medium metal bath
Display accuracy ± 1 ℃
Instrument size 670 * 515 * 520 mm
Refrigeration system cascade compressor
Working power supply AC220V ± 10% 50Hz
Product Description

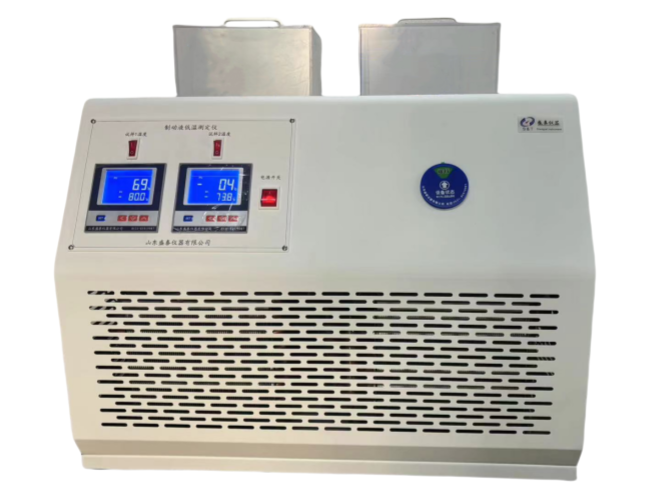

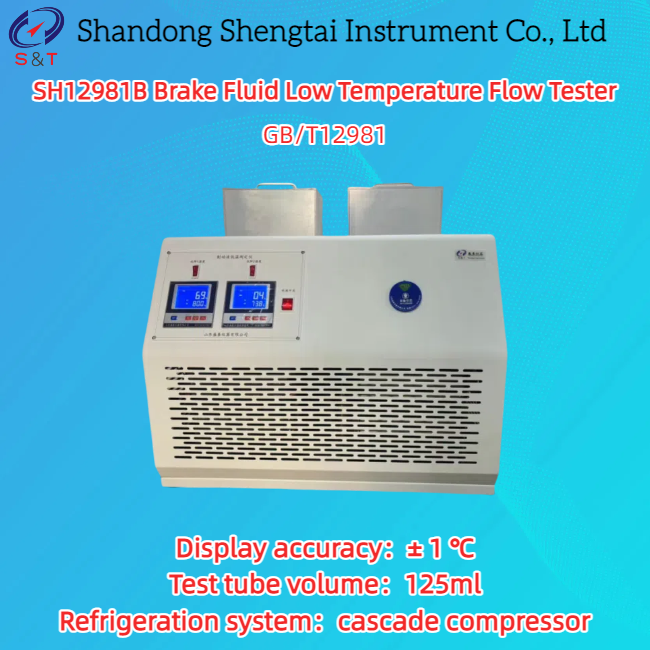

SH12981B Brake Fluid Low Temperature Flow Tester

The SH12981B brake fluid low-temperature flowability tester is designed and manufactured strictly in accordance with Appendix G standard of GB/T12981, fully meeting the requirements for determining the low-temperature flowability, water solubility, and compatibility of brake fluid.

Performance Characteristics
  • The instrument adopts compressor refrigeration, which has fast cooling speed and long service life.
  • The display mode adopts a small LCD display, which has good temperature control stability.
  • Equipped with low-temperature flowability test tubes for low-temperature flowability experiments, and equipped with centrifuge tubes for low-temperature solubility and compatibility experiments.
Main Technical Specifications and Parameters
Working power supply AC220V ± 10% 50Hz
Cold bath temp control room temp ~ -60 ℃
Refrigeration medium metal bath
Number of cold bath holes 12 holes
Display accuracy ± 1 ℃
Refrigeration system cascade compressor
Test tube volume 125ml
Environmental temperature ≤ 30 ℃
Relative humidity ≤ 85%
Instrument size 670 * 515 * 520 mm
Instrument weight 72kg
Packaging size 760 * 560 * 610 mm
Packaging weight 85kg wooden crate
12 Hole Brake Fluid Low Temp Flow Tester Metal Bath GB/T12981 0
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Quality Assurance

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

  • The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
  • The materials and main components provided meet the technical requirements specified in the technical documentation;
  • The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
  • We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
  • Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
  • After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing List
Number Name Quantity Unit Note
1 Host 1 Unit
2 Glass tube 10 Set
3 Power line 1 Strip
4 Fuse tube 1 Piece
5 Operation instructions 1 Copy
6 Packing list 1 Copy
7 Certificate of Conformity Warranty Card 1 Copy
