Petroleum Wax Oil Content Analyzer ASTM D721 ISO 2908

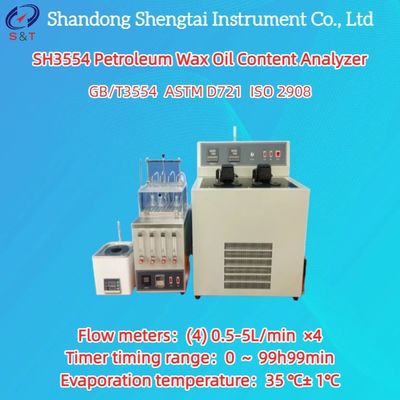

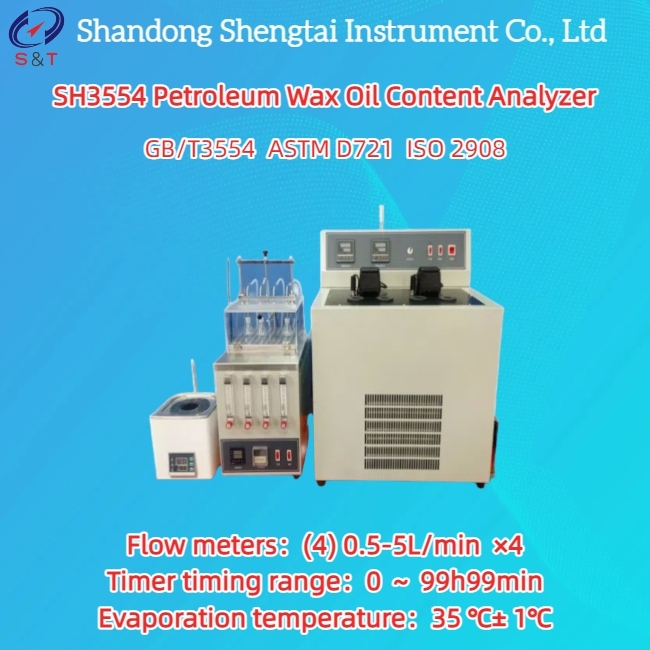

SH3554 Petroleum Wax Oil Content Analyzer
The SH3554 petroleum wax oil content analyzer is based on the Chinese standard GB/T3554 "Petroleum Wax Oil Content Determination Method" ASTM D721 ISO 2908

Petroleum wax: suitable for determining the oil content of petroleum wax with a freezing point above 30 ℃ and an oil content not exceeding 15%. Dissolve the sample in butanone, cool to -32 ℃, precipitate wax, filter and evaporate the butanone in the filtrate, weigh the residual oil, and calculate the oil content of the wax. If the wax with an oil content greater than 5% cannot be completely dissolved in butanone and separates into layers, this method should not be used.

(1) Main structure

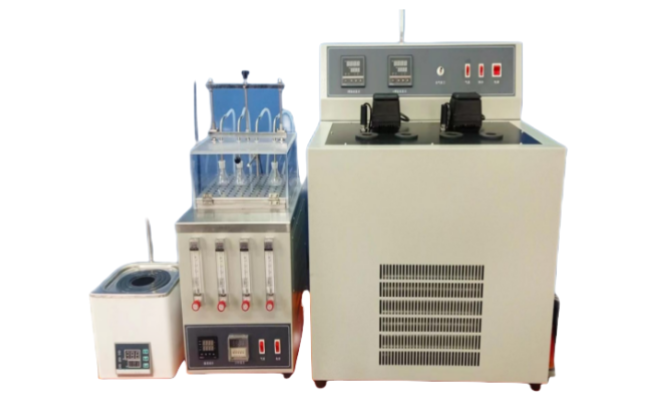

This instrument mainly consists of a digital temperature controller, a digital timer, a stainless steel bath, a compressor, an air flow meter, etc. It is equipped with a water bath at room temperature ～ 95 ℃, a cold bath at room temperature ～ -40 ℃, and an evaporation bath at 35 ℃.

(2) Instrument features
A design device that integrates a 95 ℃ water bath (also known as a hot bath) and a -40 ℃ cold bath. The instrument has a water bath on the left and a cold bath on the right, each with 4 holes, which can be grouped for testing the sample.

The temperature regulation and control of water bath, cold bath, and evaporation bath all use digital temperature controllers, which are accurate and intuitive in temperature regulation and control.

The blowing volume entering the sample in the evaporation device is detected by a glass rotor flowmeter, which can accurately control the blowing volume according to the specific requirements of the test. The blowing time can be set arbitrarily by a timer according to the time requirements of the test.

• The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity
• The materials and main components provided meet the technical requirements specified in the technical documentation
• The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
• We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
• Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
• After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
