SH128 Automatic Freezing Point Tester -70 ℃ ~ 30 ℃ Aviation Fuel 1200r/Min ASTM D1177

Place of Origin CHINA
Hàng hiệu Shandong Shengtai Instrument Co., Ltd.
Chứng nhận SH/T0090-91 ASTM D1177 GB/T2430
Model Number SH128
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Working cold bath double-layer vacuum glass bath Freezing point range -54 ℃ ~ 2 ℃
Cold bath temp control -70 ℃ ~ 30 ℃ (customized+20 ℃ ~ -80 ℃) Temp control accuracy ± 0.1 ℃
Working power supply AC220V ± 10% 50Hz Whole power around 1500W
Instrument size 720 * 450 * 680mm Bath liquid stirring automatic stirring by the stirring motor
Để lại lời nhắn
Mô tả sản phẩm

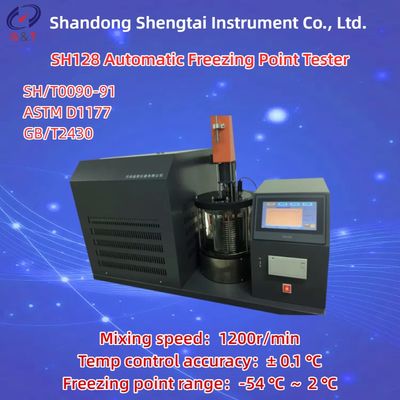

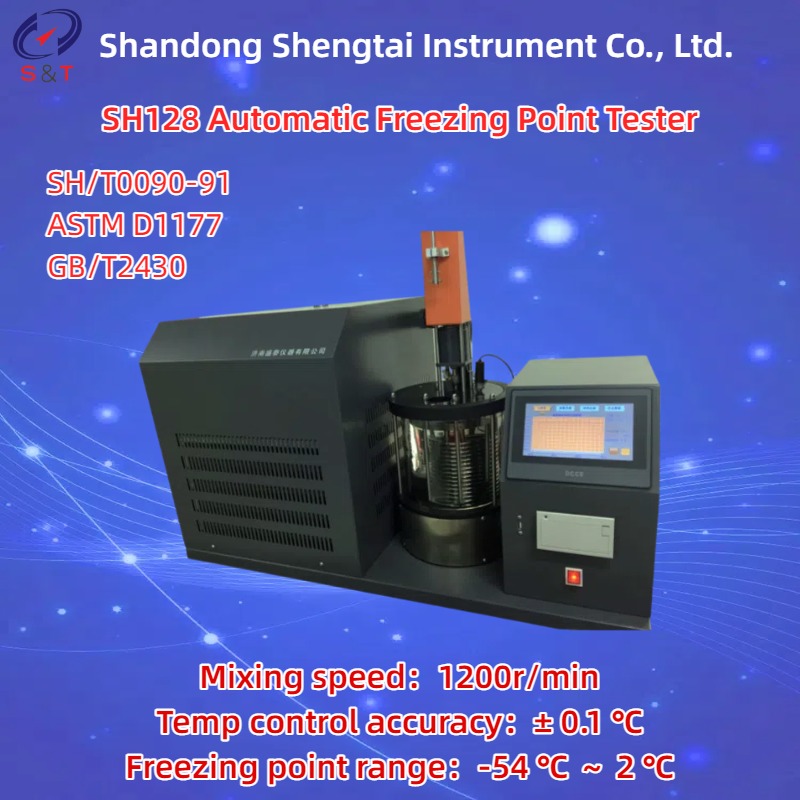

SH128 Automatic Freezing Point Tester

The SH128 automatic freezing point tester is based on the national petrochemical industry standard SH/T0090-91 (2000) "Engine Coolant Freezing Point Determination Method" and ASTM D1177 and GB/T2430 Aviation Fuel Freezing Point Determination Method. Suitable for determining the freezing point of engine coolant and its concentrate, it can also detect the freezing point of chemical and petrochemical products such as antifreeze and snow melting agents.

Instrument features:

Adopting embedded system design and imported PT100 temperature sensor, the entire testing process is automatically detected; Color touch screen; The experimental results can be stored; You can view historical data; Printing results on the instrument, mechanical automatic stirring, and experimental results can be exported through a USB flash drive and stored in a computer for multiple experiments and comparisons.

Technical Parameter

Working power supply AC220V ± 10% 50Hz
Working cold bath double-layer vacuum glass bath
Freezing point range -54 ℃ ~ 2 ℃
Cold bath temp control -70 ℃ ~ 30 ℃ (customized+20 ℃ ~ -80 ℃)
Temp control accuracy ± 0.1 ℃
Bath liquid stirring automatic stirring by the stirring motor
Mixing power 6W
Mixing speed 1200r/min
Refrigeration system imported cascade refrigeration compressor
Sample mixing synchronous reduction motor, once per second
Environmental temperature ≤ 30 ℃
Relative humidity ≤ 85%
Whole power around 1500W
Result output Can be equipped with USB drive output
Output format CSV or Excel
Instrument size 720 * 450 * 680mm
Weight 75kg

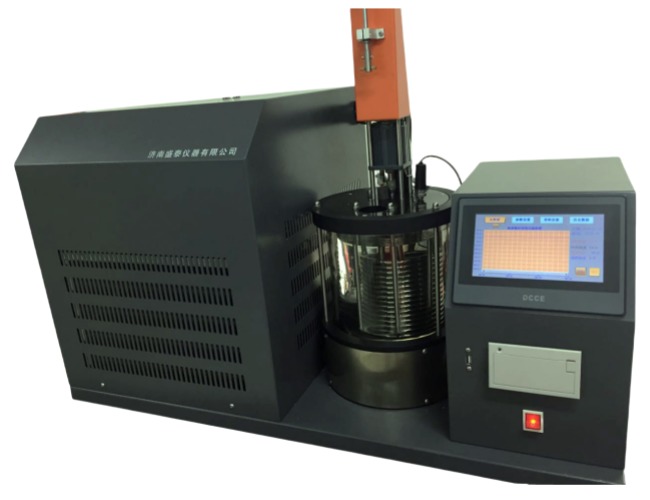

SH128 Automatic Freezing Point Tester -70 ℃ ~ 30 ℃ Aviation Fuel 1200r/Min ASTM D1177 0

● Working power supply: AC220V ± 10% 50Hz

● Working cold bath: double-layer vacuum glass bath

● Freezing point range: -54 ℃ ~ 2 ℃

● Cold bath temp control: -70 ℃ ~ 30 ℃ (customized+20 ℃ ~ -80 ℃)

● Temperature control accuracy: ± 0.1 ℃

● Bath liquid stirring: The stirring motor automatically stirs, with a power of 6W and a speed of 1200r/min

● Refrigeration system: imported cascade refrigeration compressor.

● Sample mixing: synchronous reduction motor, once per second.

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Power consumption of the whole machine: around 1500W.

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Automatic touch screen display of temperature and time curves, while real-time observation of temperature change trends

● Instrument size: 720 * 450 * 680mm

● Weight: 75kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Note: When measuring GB/T2430 aviation fuel, the freezing point result is the test result of the crystallization freezing point.



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

SH128 Automatic Freezing Point Tester -70 ℃ ~ 30 ℃ Aviation Fuel 1200r/Min ASTM D1177 1

Packing list

Number Name Quantity Unit Note
1 Host 1 Unit
2 Test bottle rubber stopper 1 Piece
3 Freezing point test tube 1 Piece
4 Temperature sensor 2 Piece
5 Power Cables 1 Root
6 Instructions 1 Copy
7 Packing list 1 Copy
8 Certificate of Conformity Warranty Card 1 Copy
