Fully Automatic Four Hole Kinematic Viscometer ASTM D445 Light colored petroleum

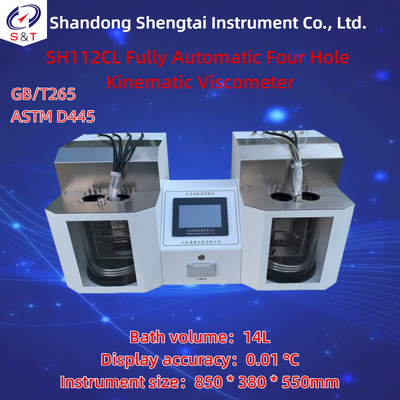

SH112CL Fully Automatic Four Hole Kinematic Viscometer

The SH112CL fully automatic four hole kinematic viscosity tester is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T265 "Petroleum Product Kinematic Viscosity Determination Method and Dynamic Viscometer Algorithm" for petroleum product kinematic viscosity determination method, and is suitable for measuring the viscosity of light colored petroleum such as lubricating oil.

Kinematic viscosity: It is the time it takes for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity at a constant temperature. The product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid measured at that temperature

Technical performance parameters:

● Compliant with standard: GB/T265

● Temperature measurement range: room temperature -100 ℃

● Display accuracy: 0.01 ℃

● Display mode: Adopting human body sensing touch screen

● Operation process: The entire process of sample temperature control, detection, calculation, viscosity tube cleaning, drying, and report printing is automated

● Viscosity tube fixture: made of all 304 stainless steel material, with high and low temperature resistant graphite sliding bearing device

● Bath volume: 14L

● Number of experimental holes: 2 holes on each side, allowing for asynchronous measurement of two types of samples simultaneously. Double layer insulation; Auxiliary heating automatic

● Temperature setting: freely set the left and right bathtubs

● Equipped with LED soft light, uniform fill light, easy to observe

● Timing range: 0.0s to 99999s

● Timing accuracy: no more than ± 0.01% within 60 minutes

● Detection method: Pt100 stainless steel probe with built-in temperature correction

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Printer: equipped with a micro printer

● Power consumption of the whole machine: ＜ 2000W

● Working power supply: AC220V ± 10%; 50Hz

● Instrument size: 850 * 380 * 550mm

● Instrument weight: 38kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
